Magnum

Hose line and Fire Extinguisher Training system

2.8 million BTU and Smart Controls for enhanced Fire Training

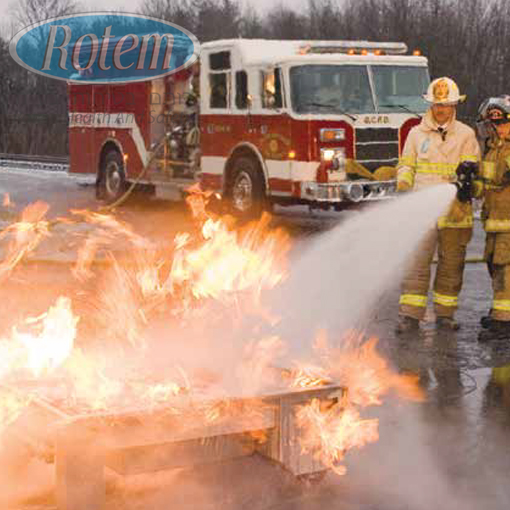

Challenge your trainees to fight the Magnum Fire Training System with extinguishers or hose lines for full scale hands-on training. With an output of 2.8 million BTU your trainees feel the heat and learn how to respond. Smart Controls shut down the propane and auto ignition only if the fire is knocked out completely.

With intense flames and rugged construction MAGNUM is designed for full-scale firefighter training — from extinguishers to hose lines. Built-in wheels and easy set-up allow you to quickly create challenging training scenarios.

Intense flames

Magnum packs 2,800,000 BTU for intense and challenging training evolutions with a large burn area and up to nine feet of flame height.

Central pilot

The industrial-grade pilot is located in the center of the system, allowing for rapid ignition and maximum burn area. The Magnum pilot is the same ignition system used in full-scale firefighter training facilities.

Flame type selection

Dual burners allow you to select either pressurized vapor fires or liquid surface fires. Pressurized vapor fires are created by direct ignition of propane and liquid surface fires are created with water bath burners.

Smart Controls

If the trainee fully extinguishes the flames, on-board sensors shut off the propane supply, signaling a successful evolution.

Safety Features

  • Built in E-Stop Safety Switch
  • Auto-Ignition Pilot
  • Infrared Flame Safety Sensor for Propane Control

Portable

Built in handle and wheels allow for easy transport and set up.

Durable

Corrosion resistant, stainless steel construction and reinforced supply components.

Versatile

Full range of extinguishers or hose lines can be used for fire brigade or fire department training.

Fire Props

Stainless steel props can be used with Magnum to simulate different fire scenarios.

Choose from:

  • Computer Monitor Prop
  • Electric Motor Prop
  • Rubbish Bin Prop

Specifications

  • Base Unit Dimensions: 4'1" x 2'7" x 1'9"
  • Stainless Steel ConstructionFuel Type: Propane
  • Input: 2,800,000 BTU/H
  • Flame Height (Normal Max.): 9 ft.
